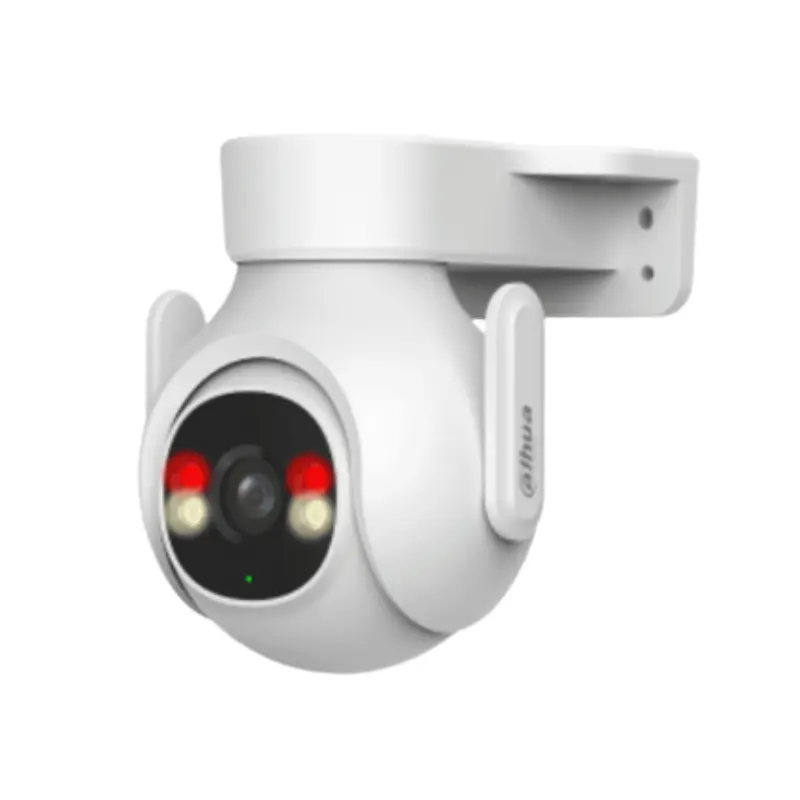

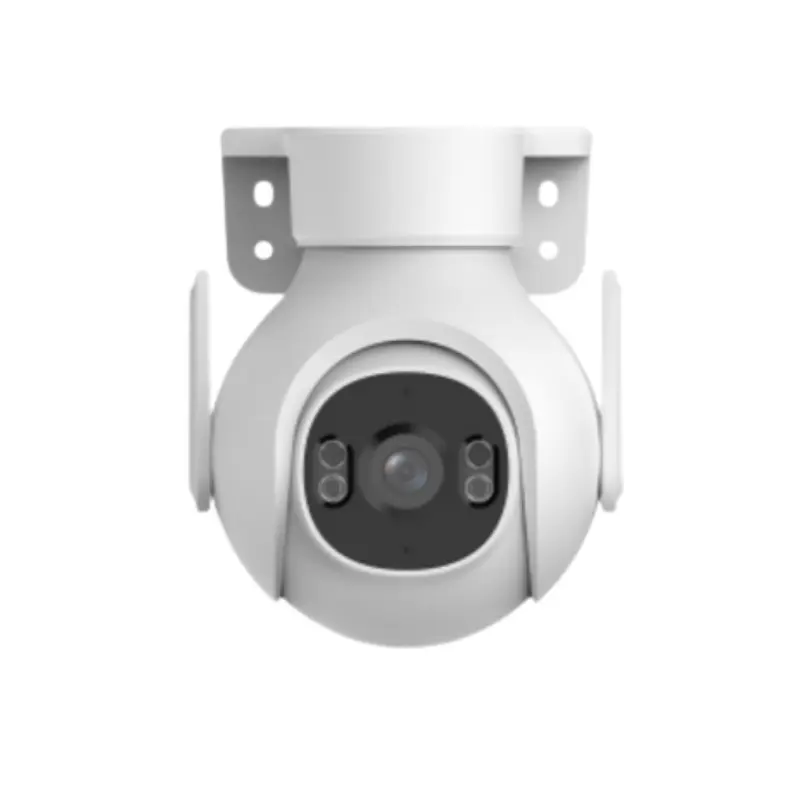

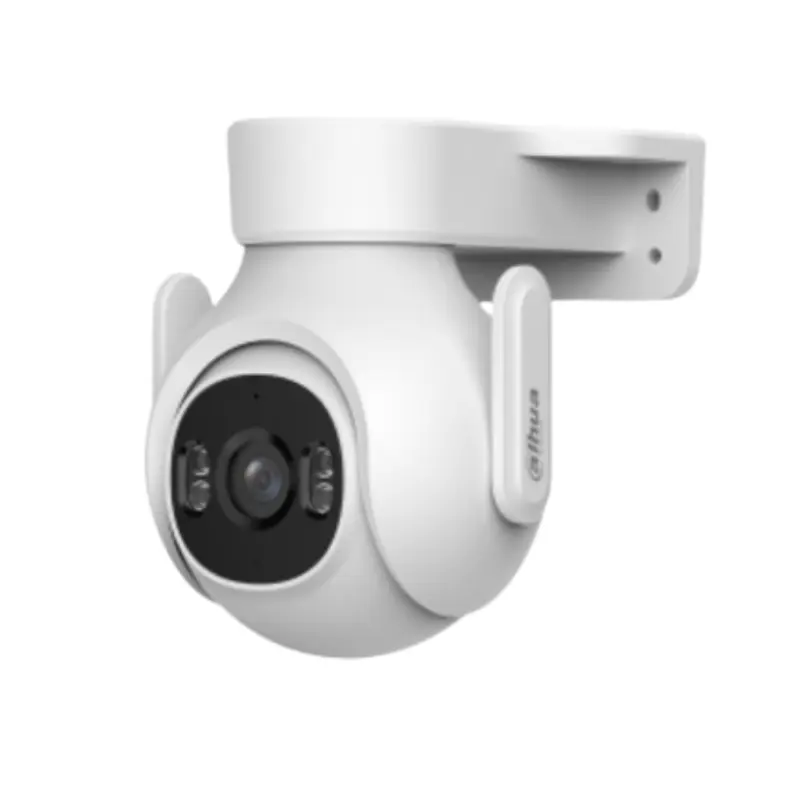

DAHUA Picoo 5MP WI-FI DH-P5B-PV

Camera

Image Sensor

1/2.8″ CMOS

Pixel

5 MP

Max. Resolution

2560 (H) × 1920(V)

Electronic Shutter Speed

1 s–1/100,000 s

Illuminator Number

2 (IR light); 2 (warm light)

Illumination Distance

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)

Lens

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

4.0 mm: H: 80.4°; V: 58.1°; D: 104.8°

Close Focus Distance

4.0 mm: 0.3 m (0.98 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 345°;

Tilt: 0° to +80°

Preset

300

Smart Event

IVS

Tripwire; intrusion

Human Detection

Yes

SMD

SMD3.0

Active Deterrence

Light Warning

Warm light warning;

Flash duration: 5 s–30 s;

Flash frequency: high, medium, low

Sound Warning

Offers 1 sound alarm and 10 custom sound alarms can be imported;

Sound can be set from 0%–100%;

Play times can be set from 1-10.

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Resolution

5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Video Bit Rate

H264: 104 kbps-8,192 kbps

H265: 41 kbps-8,192 kbps

Day/Night

Auto (ICR); Color/B/W

WDR

DWDR

Image Rotation

180°

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726;

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi Standard

IEEE802.11b;IEEE802.11g;IEEE802.11n

Wi-Fi Frequency Range

2.4000-2.4835 GHz

Power Transmission

≤20 dBm@2400–2483.5 MHz

Storage

Micro SD card (256 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

Smart PSS;DMSS;Player;ConfigTool;NVR;Smart Player

Mobile Client

iOS;Android

Certification

Certifications

CE

Power

Power Supply

12 VDC, 1 A ± 10% (included)

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤95%

Structure

Product Dimensions

140.5 mm × Φ111.0 mm (5.53″ × Φ4.37″)

Net Weight

0.5 kg (1.10 lb)

Gross Weight

1 kg (2.20 lb)
