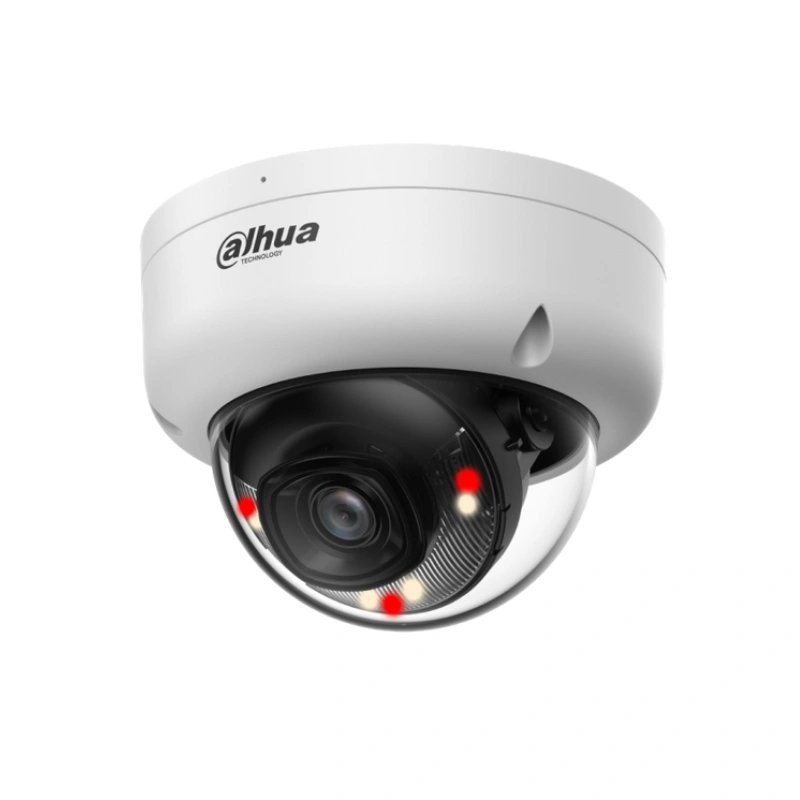

Dahua DH-IPC-HDBW1439E1-A-IL 4MP Entry Smart Dual Light
Dahua DH-IPC-HDBW1439E1-A-IL 4MP Entry Smart Dual Light Fixed-focal Dome Network Camera
Dahua DH-IPC-HDBW1439E1-A-IL е 4MP Entry Smart Dual Light IP bullet камера, дизајнирана за сигурен и континуиран видео надзор во внатрешни и надворешни услови. Камерата користи 1/3″ CMOS сензор со резолуција од 4 мегапиксели (2560 × 1440) и овозможува јасна и детална слика дури и при многу слабо осветлување.
Благодарение на Smart Dual Light технологијата, камерата автоматски се префрлува помеѓу инфрацрвено и бело LED осветлување, обезбедувајќи целосна Full-color слика и во целосна темнина. Со фиксно сочиво од 2.8 mm или 3.6 mm и поддршка за DORI растојанија до 80 метри, камерата е идеална за дворови, паркинзи, деловни објекти и индустриски зони.
Поддржани се интелигентни функции како Human Detection и Smart Search, како и напредни видео функции H.265/H.264, Smart H.265+/Smart H.264+, BLC/HLC/WDR 120dB, 3D NR и Privacy Masking, кои обезбедуваат оптимална безбедност и висококвалитетно снимање.
Гаранција 24 месеци
4.770,00 ден
| Dahua DH-IPC-HDBW1439E1-A-IL 4MP Entry Smart Dual Light – Specifications | |
|---|---|
| General | |
| Camera Type | IP |
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2560 × 1440 |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination | 0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) IR; Up to 30 m (98.43 ft) Warm light |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 3 IR LED; 4 Warm light |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 95.5°; V: 53.4°; D: 110.7° 3.6 mm: H: 78.4°; V: 42.4°; D: 92.4° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.0 m (3.28 ft); 3.6 mm: 1.5 m (4.92 ft) |
| DORI Distance | |
| 2.8 mm Lens | Detect: 61.6 m (202.10 ft) Observe: 24.6 m (80.71 ft) Recognize: 12.3 m (40.35 ft) Identify: 6.2 m (20.34 ft) |
| 3.6 mm Lens | Detect: 80.0 m (262.47 ft) Observe: 32.0 m (104.99 ft) Recognize: 16.0 m (52.49 ft) Identify: 8.0 m (26.25 ft) |
| Note | |
| *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |
| Intelligence | |
| Human Detection | Support the classification and accurate detection of human |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Streaming Capability | 2 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC / HLC / WDR | BLC: Yes; HLC: Yes; WDR: 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination / Smart Dual Light | Yes |
| Image Rotation / Mirror | Image Rotation: 0°/180°; Mirror: Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Бренд | Dahua |
|---|---|
| Боја | Бела |
| Мегапиксели | 4 мп |
| Тип на Камера | Паметна Камера со Двојна Светлина |
