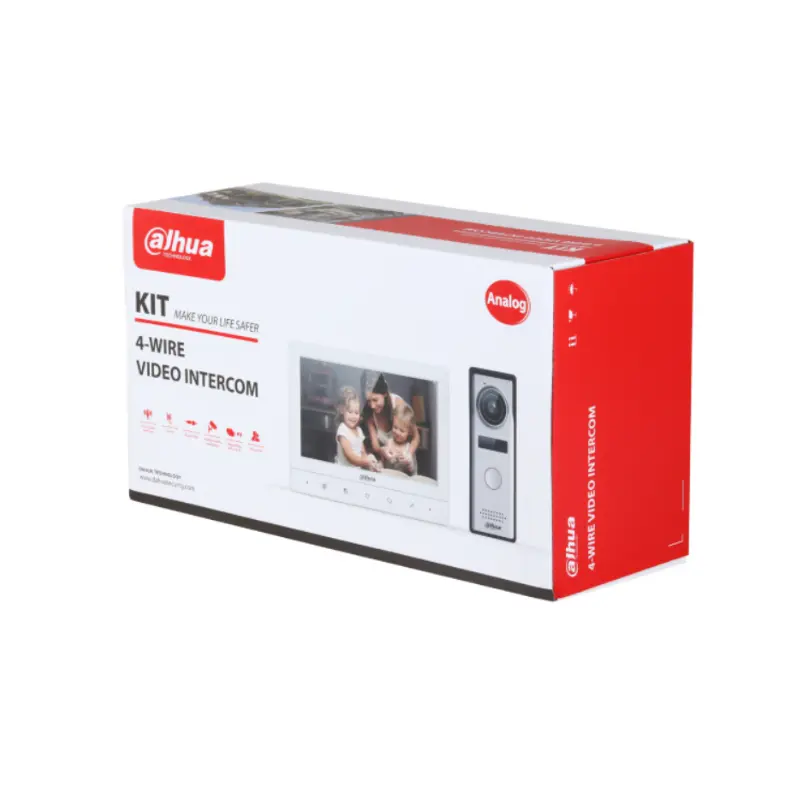

DAHUA KTA02 Video Intercom Kit

Button Type

Touch button

Basic

Display

7.0″ TFT

Screen Resolution

1024 × 600

Status Indicator

1 indicator light
Green: Power on

Function

Communication Mode

Analog

Performance

Casing

PC + ABS

General

Color

White

Power Supply

DC12V/1A

Power Adapter

Included

Installation

Surface mount

Certifications

CE/FCC

Accessory

Bracket (included)

5 m (16.40 ft) cable (included)

Dimensions

133.90 mm × 182.70 mm × 17.70 mm

(5.27″ × 7.19″ × 0.70″)

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH–95%RH

Power Consumption

≤ 2W (standby)
≤ 5W (working)

Net Weight

0.25 kg (0.55 lb)

Gross Weight

0.48 kg (1.05 lb)

VTO1000J

Button Type

Mechanical

Basic

Camera

1.3MP CMOS

Field of View

Horizontal: 70°
Vertical: 40°

WDR

DWDR

Illuminator Type

Auto IR

Day/Night

ICR auto switch

Audio Input

1 channel to the microphone; pickup distance 0.5 m

Audio Output

1 channel to the speaker

Status Indicator

1 indicator light
Green: Power on

Function

Communication Mode

Analog

Unlock Mode

Local unlock

Performance

Casing

PC + ABS

Port

Exit Button

1

Door Status Detection

1

General

Color

Silver

Power Supply

Powered by indoor monitor

Installation

Surface mount

Certifications

CE/FCC

Accessory

Rain cover (included)

5 m cable (included in kit)

Dimensions

131.45 mm × 46.00 mm × 33.80 mm

(5.18″ × 1.81″ × 1.33″)

Protection Grade

IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Operating Temperature

–30°C to +60°C (–22°F to +140°F )

Operating Humidity

10%RH–95%RH

Power Consumption

≤ 1W (standby)
≤ 3W (working)

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.38 kg (0.84 lb)
