AHD vs IP Cameras: Which Is Better to Install?

AHD vs IP Cameras: Which Is Better to Install?

Complete guide to choosing between AHD and IP security cameras for your surveillance needs

📅 June 28, 2026 ⏱️ 8 min read 📊 Complete Comparison

Introduction

When installing a security camera system, one of the most critical decisions you'll face is choosing between AHD (Analog High Definition) and IP (Internet Protocol) cameras. Both technologies have advanced significantly, and each offers distinct advantages depending on your specific security needs, budget, and infrastructure.

In this comprehensive guide, we'll break down the differences, benefits, and ideal use cases for each technology to help you make an informed decision for your installation project.

⚠️ Common Misconception: Mobile Phone Cameras vs Professional Surveillance

This comparison is fundamentally wrong, and here's why:

The Reality Behind the Numbers

Many people argue: "My smartphone has a 48MP camera, so why do I need a 5MP or 8MP surveillance camera?" This logic completely misunderstands how cameras work.

🎯 Why Mobile Phone Megapixels Are Misleading:

Different Purpose: Phone cameras are designed for occasional photos in varied lighting (outdoors, indoors, night mode). Surveillance cameras are engineered for continuous 24/7 operation with specific requirements like low light performance and wide field of view.

Sensor Size: Professional surveillance cameras have much larger sensors than phones. A 5MP surveillance sensor captures more detail per pixel than a 48MP phone sensor because the light is spread across a larger, higher-quality sensor.

Lens Quality: Professional surveillance lenses are optimized for wide angles (90-180°) with consistent focus and minimal distortion. Phone lenses are variable and optimized for different scenarios.

24/7 Operation: Surveillance cameras must maintain consistent quality through night, rain, fog, and extreme temperatures. Phones are designed for short bursts of use in controlled conditions.

Compression & Encoding: Surveillance cameras use professional codecs optimized for security footage. Phone images use compression optimized for sharing on social media.

The Technical Difference

📷 Phone Camera

Purpose: Individual photos in varied conditions
Quality Priority: Peak performance in ideal lighting
Usage: Occasional, short bursts
Durability: Indoor/occasional outdoor use

🎥 Professional Surveillance Camera

Purpose: Continuous monitoring 24/7
Quality Priority: Consistent performance in all conditions
Usage: Continuous operation 365 days/year
Durability: Weather-resistant, extreme temperature rated

My Professional Opinion

💡 Expert Perspective:

Comparing a phone camera to a professional AHD or IP surveillance camera is like comparing a smartphone calculator to a scientific instrument. Yes, both calculate, but one is engineered for continuous precision under demanding conditions.

A 5MP professional surveillance camera will capture far clearer, more usable security footage during night operations than a 48MP phone. Why? Because the surveillance camera's sensor, lens, and processing are optimized specifically for security monitoring, capturing license plates, identifying faces, and recording sharp video even in low light.

Phone cameras excel at creative photography in good lighting. Professional surveillance cameras excel at providing reliable evidence capture 24/7. They're fundamentally different tools for different purposes.

Bottom line: Never judge surveillance camera quality by megapixel count alone. Judge by sensor size, low-light performance, lens quality, and continuous operation capabilities. A 5MP or 8MP professional surveillance camera will outperform a 48MP smartphone camera for security purposes every single time.

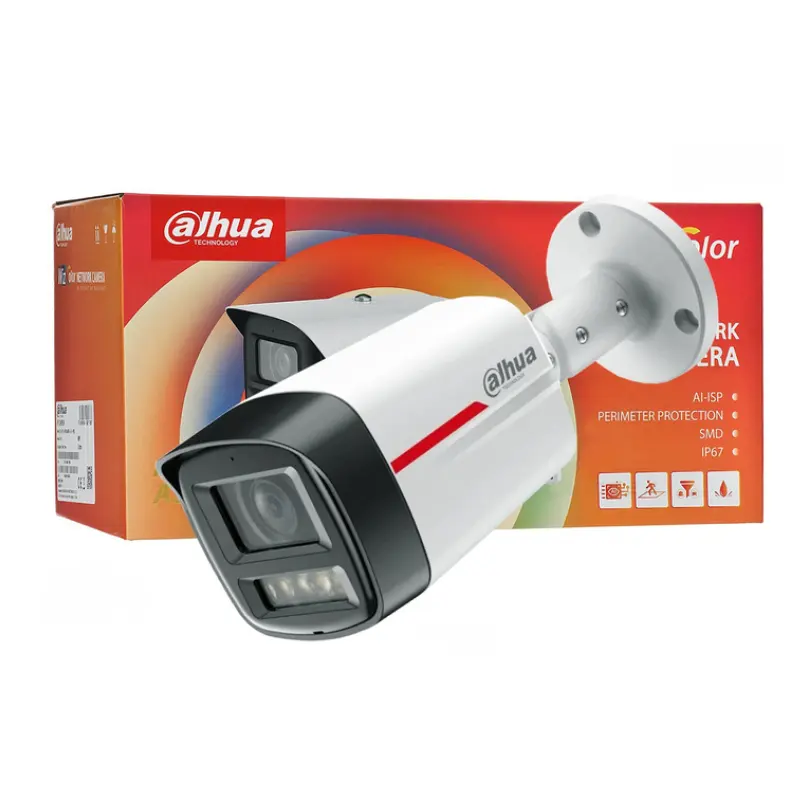

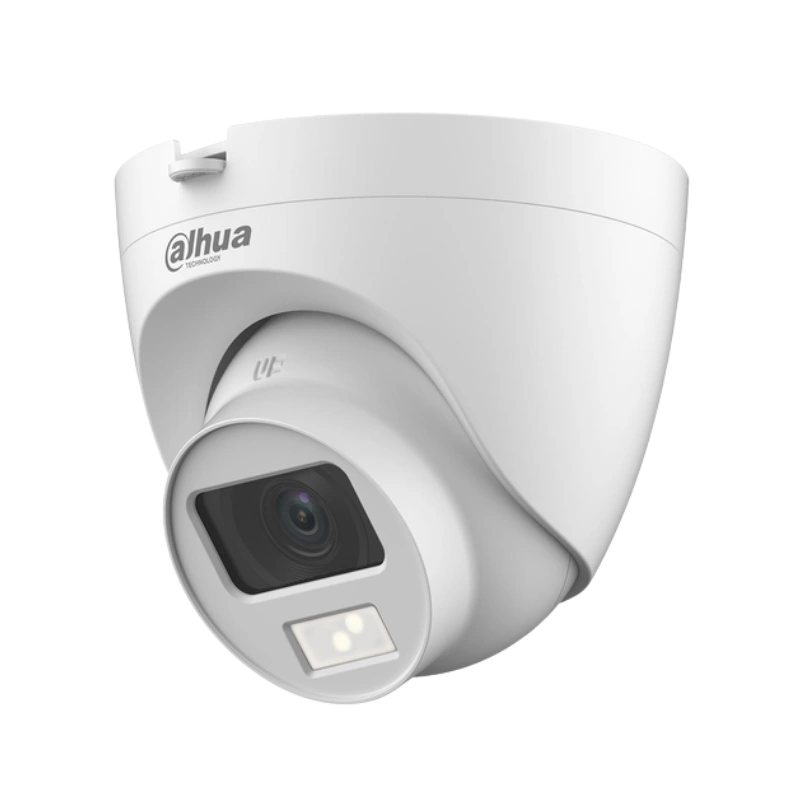

AHD Cameras: The Traditional Choice

What Are AHD Cameras?

AHD (Analog High Definition) cameras represent a professional evolution of traditional analog CCTV systems. They transmit high-quality video signals over standard coaxial cables with multiple resolution options: 2MP (1920 x 1080 pixels) for standard surveillance, 5MP (2560 x 1920 pixels) for detailed monitoring, and 8MP (3840 x 2160 pixels) for maximum clarity. Modern Dahua AHD systems deliver professional-grade surveillance while maintaining the reliability and simplicity of coaxial cable infrastructure. These systems operate independently without requiring internet connection, yet offer 24/7 remote access via LAN connection to the DVR, combined with advanced AI features and smart analytics.

Benefits of Modern AHD Cameras (Dahua Professional Systems)

💰 Cost-Effective

Lower initial investment compared to IP systems. AHD cameras and DVR systems are significantly cheaper while offering professional capabilities.

📏 Easy Installation

Uses existing coaxial cable infrastructure. No network expertise required, making installation straightforward and fast.

🎬 Multiple Resolution Options

Available in 2MP, 5MP, and 8MP resolutions. Choose the resolution that matches your specific surveillance needs and budget.

📱 24/7 Remote Access

Connect DVR to router via LAN cable to access live footage and recordings on your phone anytime, anywhere. No internet required for cameras to function.

🧠 Advanced AI Functions

Modern Dahua AHD systems include motion detection, smart analytics, and advanced security features comparable to IP cameras.

🚫 Independent Operation

Works perfectly without internet connection. Cameras and DVR operate autonomously. Remote access is optional bonus via LAN connection.

⚡ Stable & Reliable

Dedicated coaxial infrastructure ensures stable signal and continuous recording. No network congestion or bandwidth limitations.

🔒 Professional Grade Security

Full surveillance system with DVR/NVR capabilities, secure local storage, and optional remote monitoring via LAN.

AHD System Capabilities

✨ Modern Dahua AHD Systems Include:

Multiple Resolution Tiers: 2MP for basic monitoring, 5MP for detail, 8MP for maximum clarity.
Smart Analytics: Motion detection, object tracking, and intelligent event triggers.
Professional DVR/NVR: Full-featured recording and playback with advanced search capabilities.
Remote Monitoring: Connect DVR to LAN/router for 24/7 access via mobile apps and web interface.
Autonomous Operation: Full functionality without internet - cameras and DVR work independently.
Long Recording: Extended storage with configurable recording schedules and motion-based recording.

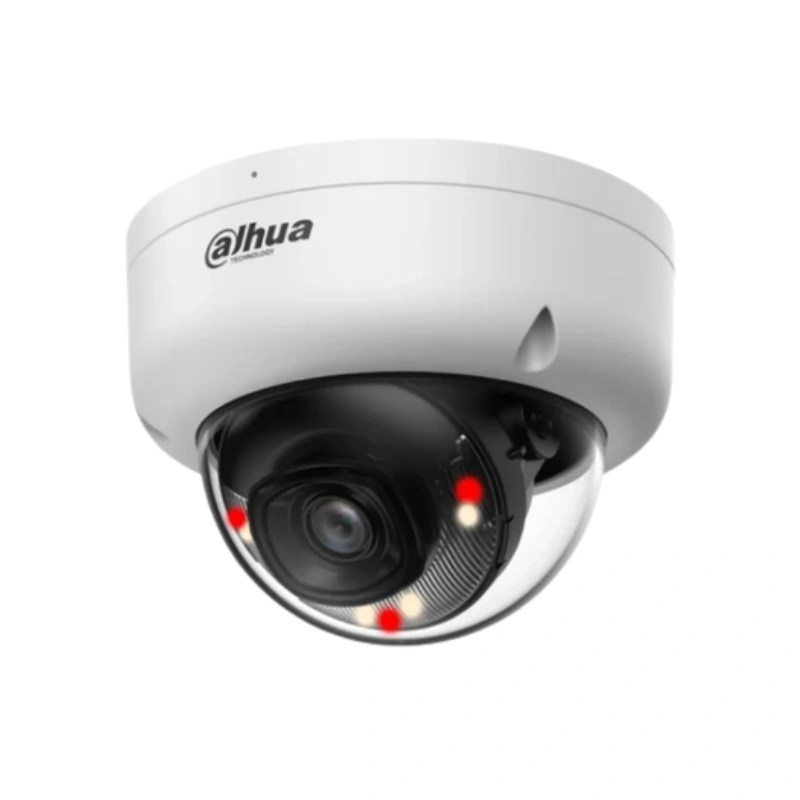

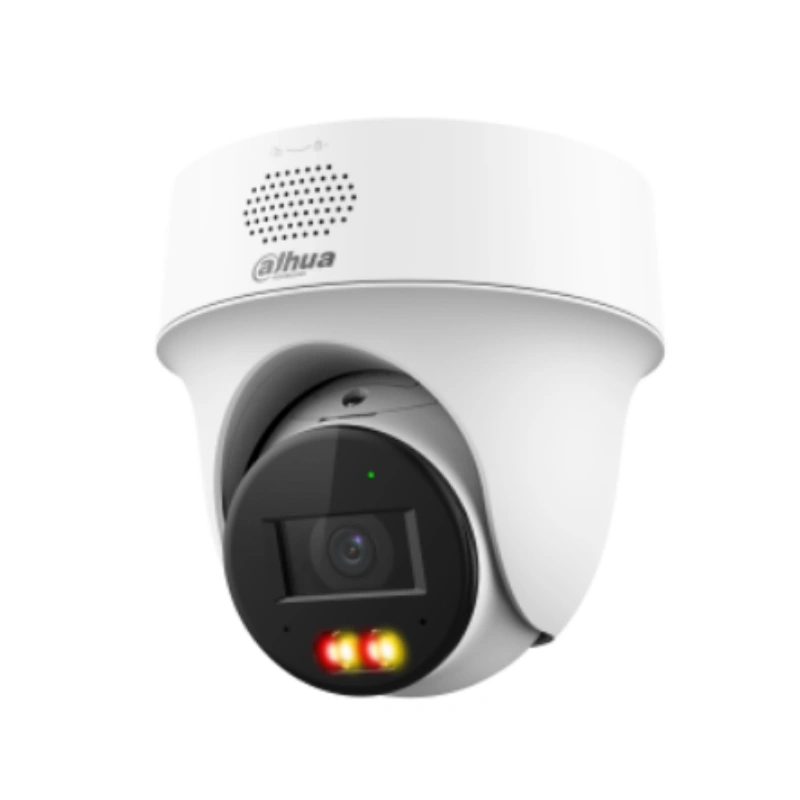

IP Cameras: The Modern Solution

What Are IP Cameras?

IP (Internet Protocol) cameras are modern network-based surveillance devices that transmit video over Ethernet networks. They offer resolutions from 2MP to 12MP or higher, with advanced features like analytics, cloud storage, and remote access capabilities.

Benefits of IP Cameras

📱 Remote Access

View live footage and recordings from anywhere using mobile apps or web browsers.

🎯 High Resolution

Up to 12MP or higher resolution provides exceptional detail and identification capabilities.

🧠 Smart Analytics

AI-powered features like motion detection, facial recognition, and object tracking.

☁️ Cloud Storage

Flexible storage options including cloud backup for enhanced security and accessibility.

🔧 Easy Scalability

Add cameras to your system without major infrastructure changes. Grow at your own pace.

🔒 Advanced Security

Built-in encryption, secure authentication, and regular firmware updates for protection.

IP Cameras Limitations

⚠️ Consider These Drawbacks:

Higher Cost: Initial investment in cameras and NVR systems is significantly higher.
Separate Network Infrastructure: Works best on a dedicated, independent network (separate from main business network). Requires separate networking equipment for optimal performance and security.
Complex Installation: Requires networking knowledge and proper configuration of separate network infrastructure.
Initial Setup Complexity: More components to configure compared to AHD's simpler coaxial cable setup.

Side-by-Side Comparison

Feature AHD Cameras IP Cameras
Initial Cost Low to Medium Medium to High
Resolution Options 2MP, 5MP, 8MP Up to 12MP+
Remote Access (24/7) Yes (via LAN/Router connection) Yes (via Internet)
Installation Difficulty Easy Moderate to Complex
Bandwidth Usage Low to Moderate High
Smart Features & AI Advanced (Motion Detection, Analytics) Advanced (AI, Facial Recognition)
Professional DVR/NVR Yes - Full Featured Yes - Full Featured
Works Without Internet Yes - Full Functionality Yes - Full Local LAN Functionality (Internet optional for cloud only)
Mobile App Access Yes (via LAN connection to DVR) Yes (via Internet)
Cable Distance Up to 500m (coaxial cable) Unlimited (Network Based)
System Reliability (Local LAN) Very High (Independent Operation) Very High (Works on Closed LAN)

🔑 Important Clarification About Internet Dependency:

Both AHD and IP cameras work perfectly on closed LAN networks and with internet. You can connect either system's NVR/DVR to your router via LAN cable and watch video on your phone via internet. The internet becomes relevant only when you want cloud storage, remote access from outside your network, or backup to cloud services. For local, closed-system surveillance, both technologies are equally independent from internet connectivity.

When to Choose Each System

Choose Modern AHD Systems (Dahua) If:

  • You want a professional-grade system at a lower cost
  • Reliable operation without internet dependency is critical
  • You need 24/7 monitoring via LAN connection to your router
  • You prefer autonomous operation - cameras work even if internet goes down
  • You need multiple resolution options (2MP, 5MP, 8MP)
  • You want advanced features (motion detection, analytics, smart recording)
  • You prefer coaxial cable infrastructure for stable, interference-free signal
  • You need a complete professional DVR/NVR surveillance system
  • Budget is a primary concern but quality cannot be compromised

Choose IP Cameras If:

  • You have ultra-reliable high-speed internet connection
  • You need cloud storage and cloud-based backup
  • You want maximum resolution (12MP or higher)
  • You need advanced facial recognition and AI analytics
  • You plan significant system expansion in the future
  • You want integration with third-party security systems
  • You prioritize cutting-edge technology features
  • Your facility supports network infrastructure for hundreds of devices

Conclusion

Modern Dahua AHD and IP camera systems are both professional-grade solutions that deliver exceptional surveillance capabilities. The gap between them has narrowed significantly with advanced AHD technology now offering AI functions, multiple resolutions, and 24/7 remote access.

The key difference: Dahua AHD systems provide professional surveillance with complete independence from internet connection and lower costs, while IP cameras offer cloud integration, maximum resolution, and seamless internet-based access.

Choose AHD for a reliable, cost-effective professional system that works perfectly without internet. Choose IP for cutting-edge technology and cloud-based features. Either way, you're investing in professional Dahua surveillance technology that will protect your property 24/7.

Ready to upgrade your security system? Browse our comprehensive selection of professional Dahua AHD and IP cameras, and find the perfect solution that matches your specific surveillance requirements and budget.
