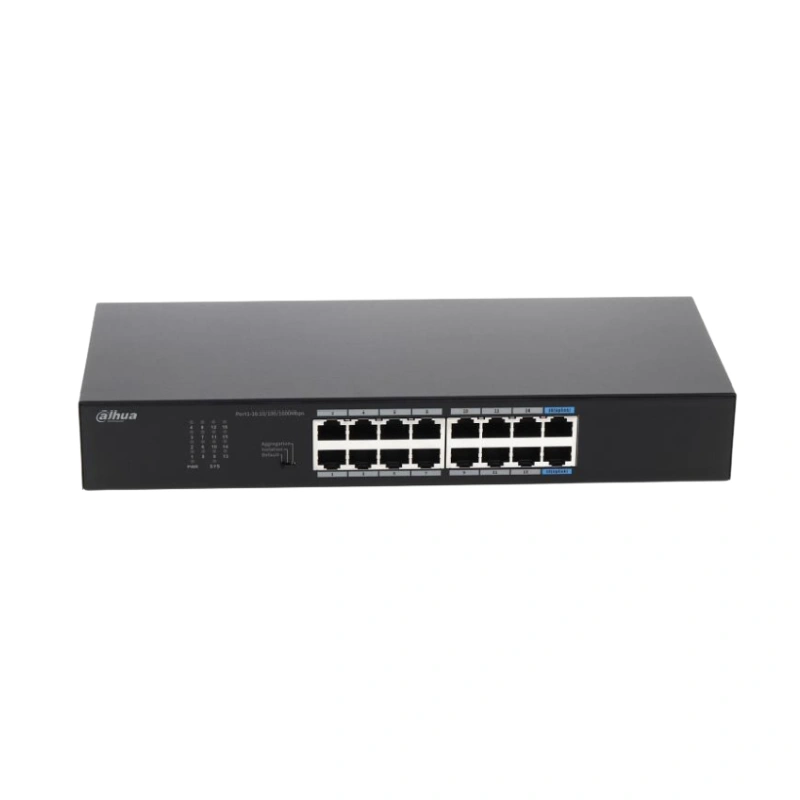

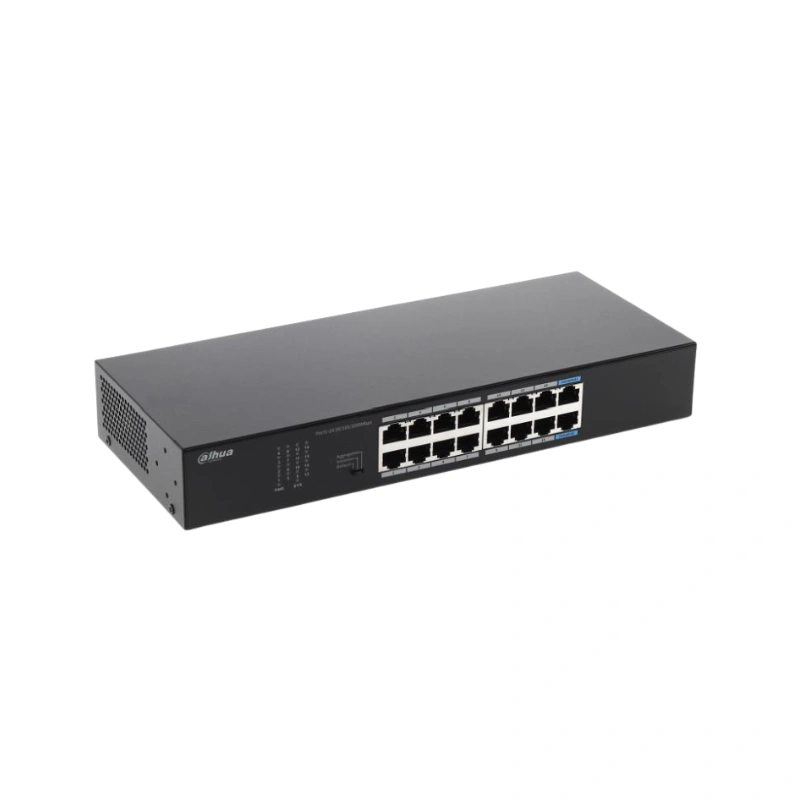

Dahua S3016-16GT

Layer 2

32 Gbps

23.808 Mpps

Port 1-14: 14 × RJ-45 10/100/1000 Mbps;

Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)

–10 °C to +55 °C (+14 °F to +131 °F)

10%–90% (RH), non-condensing

–40 °C to +70 °C (–40 °F to +158 °F)

5%–95% (RH), non-condensing

Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A

Idling: 2.2 W;

Full load: 7.8 W

Air discharge: 8 kV;

Contact discharge: 6 kV

Common mode: 2 kV;

Differential mode: 0.5 kV

0.74 kg (1.63 lb)

1.297 kg (2.86 lb)

294 mm × 119 mm × 44 mm (11.57″ × 4.68″ × 1.73″) (L × W × H)

353 mm × 215 mm × 75 mm (13.9″ × 8.46″ × 2.95″) (L × W × H)

Sheet Metal

Desktop mount; wall mount; rack mount

CE

Default: Default setting

Post isolation: Prevents traffic from being sent between ports 1-14, but allows ports 1-14 to send its traffic to the uplink ports 15-16. These uplink ports can also send their traffic to 1-14.

Port aggregation: Aggregates uplink ports.

8.4 Mbit

12K Byte

16K

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

Static link aggregation

IEEE 802.3x traffic control

Yes

1 × User Manual;

1 × Legal and Regulatory Information;

1 × Power Cord;

1 × Rack-mounting Kit;
