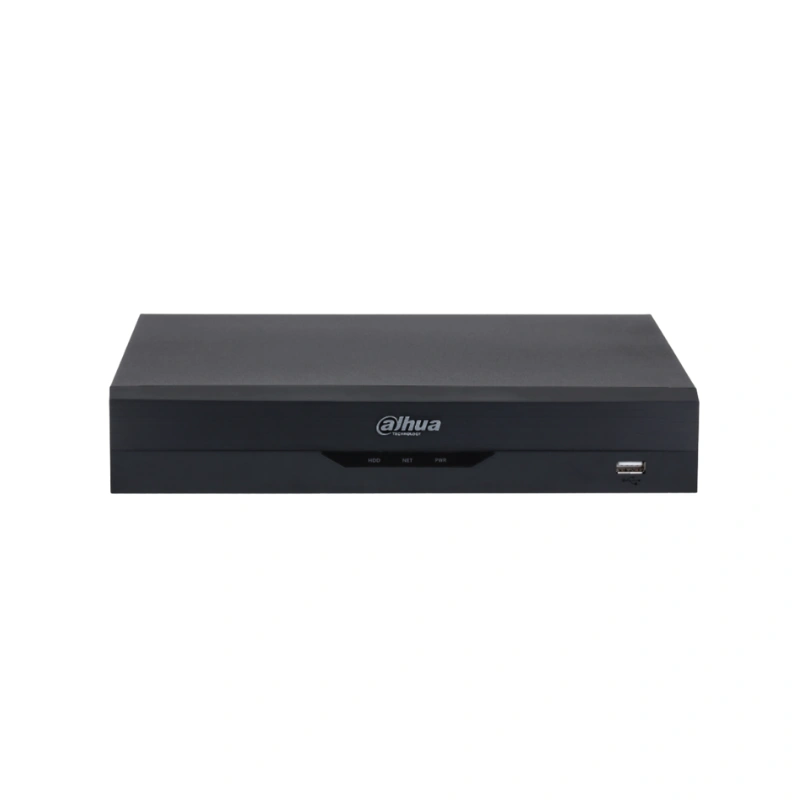

Dahua XVR5108HS-4KL-I3 8 Channel Penta-brid 4K-N 8MP/5MP DVR with AI WizSense front side view
Dahua XVR5108HS-4KL-I3 8 Channel 8MP - Image 2

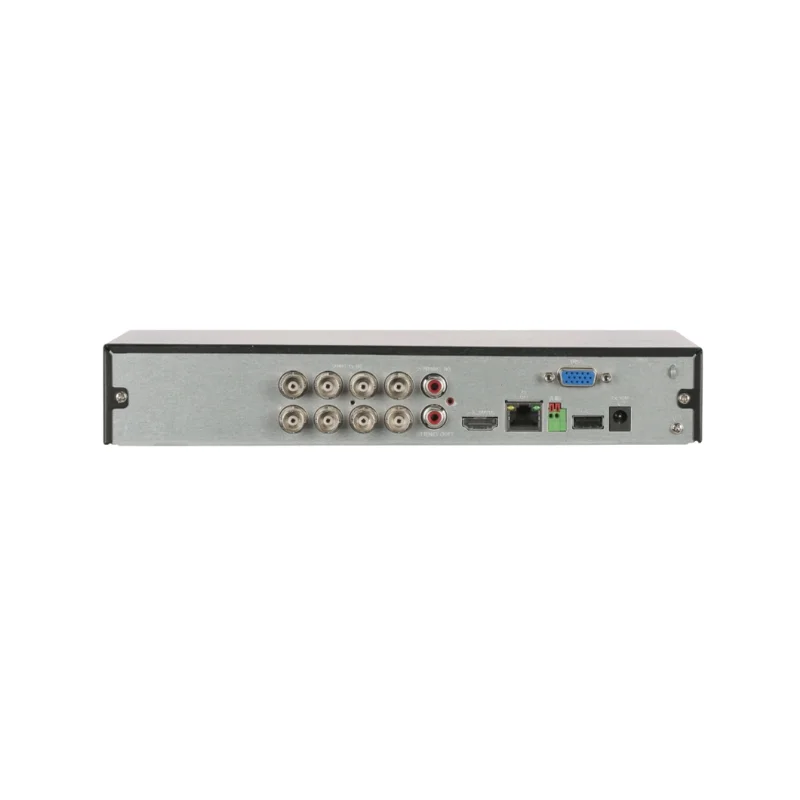

Dahua XVR5108HS-4KL-I3 8 Channel Penta-brid 4K-N 8mp/5MP DVR with AI WizSense rear view

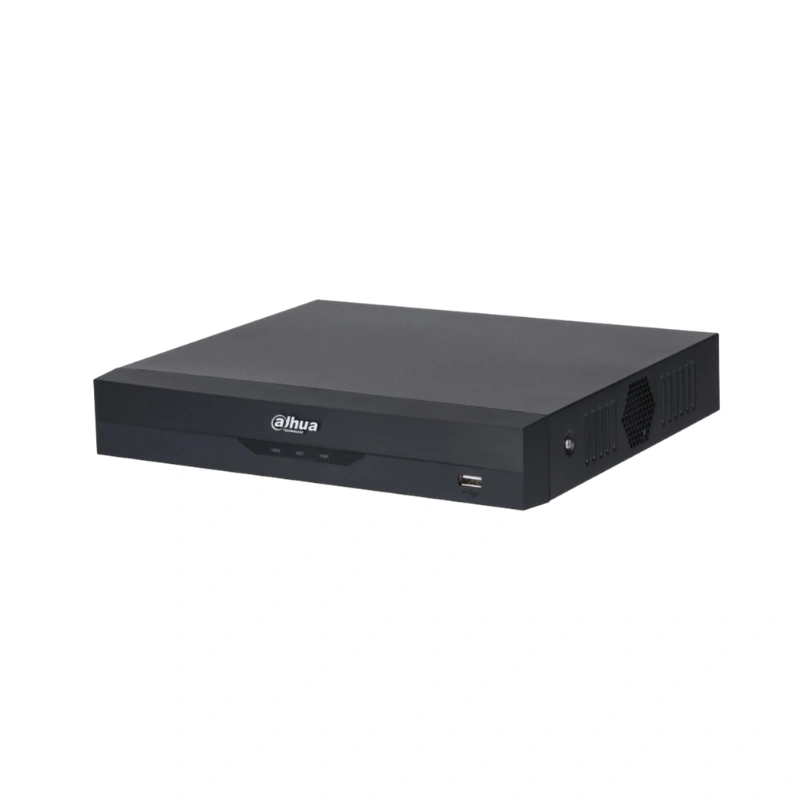

Dahua XVR5108HS-4KL-I3 8 Channel Penta-brid 4K-N 8MP/5MP DVR with AI WizSense front side view
Dahua XVR5108HS-4KL-I3 8 Channel Penta-brid 4K-N 8mp/5MP DVR with AI WizSense rear view

Dahua XVR5108HS-4KL-I3 8 Channel 8MP

Dahua

Dahua XVR5108HS-4KL-I3 8CH Penta-brid 4K Value 8MP/5MP Compact 1U 1HDD WizSense Digital Video Recorder

Dahua XVR5108HS-4KL-I3 е професионален 8-канален Penta-brid DVR дизајниран за сигурен и интелигентен видео надзор. Овој компактен 1U рекордер овозможува поврзување до 8 аналогни камери и до 16 IP камери, овозможувајќи максимална флексибилност при инсталација во домови, канцеларии, индустриски и јавни објекти. Со поддршка за висока резолуција до 4K-N 8 8MP/5MP, секој видео запис е јасен, остар и детализиран, овозможувајќи лесна идентификација на лица, објекти и активности во реално време.

Вградениот Linux систем и AI WizSense функции, како што се SMD Plus, детекција на лица, периметарна заштита и QuickPick 2.0, овозможуваат интелигентна анализа на видео записите, намалување на лажните аларми и прецизно следење на движење. XVR-от поддржува HDCVI, AHD, TVI, CVBS и IP камери (Penta-brid), има HDMI и VGA видео излез, Dual-stream и 1 SATA слот за хард диск до 16 TB.

Со максимална пропусна моќност од 128 Mbps, овој DVR гарантира стабилно снимање и репродукција, како и интеграција со трети лица камери преку ONVIF стандардот. Dahua XVR5108HS-4KL-I3 е идеално решение за сигурност со висока резолуција, интелигентни функции и доверливо складирање на видео податоци, обезбедувајќи долготрајна и безбедна работа 24/7.

Гаранција 24 месеци

15.000,00 ден

Dahua XVR5108HS-4KL-I3 8 Channel 8MP – Specifications
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
Quick Pick
QuickPick 2.0 AI by Recorder (Number of Channels) 2 channels
Perimeter Protection
Perimeter Performance AI by Recorder (Advanced Mode) 2 channels, 10 IVS rules for each channel
Perimeter Performance AI by Recorder (General Mode) 8 channels, 10 IVS rules for each channel
Face Detection
Face Attributes 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
Privacy Protection
Privacy Protection Performance of AI by Recorder (Number of Channels) 1 channel
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 images
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD Plus
SMD Plus by Recorder 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 16 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
Scene Changing
Scene Changing by Recorder 1 channel
Irregular Black Block Masking
Irregular Black Block Masking by Recorder 1 channel
EPTZ
EPTZ by Recorder 1 channel
Audio and Video
Analog Camera Input 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input Up to 16 channels of IPC access. 8 IP channels by default + 8 channels (analog channels are converted to IP channels).
Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps.
*After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.
Encoding Capacity Encode Enhancement disabled:
Main stream: 1st channel 4K@(1–15 fps), others 4K@(1–7 fps); 1st channel 6 MP@(1–20 fps), others 6 MP@(1–10 fps); 1st channel 5 MP@(1–25 fps), others 5 MP@(1–12 fps); 1st channel 4K-N/4 MP/3 MP@(1–25/30 fps), others 4K-N/4 MP/3 MP@(1–15 fps); 4K@(1–8 fps), 5 MP@(1–15 fps); 4M-N/1080p/720p/960H/D1/CIF@(1–25/30 fps).
Sub stream: 960H@(1–15 fps); D1/CIF@(1–25/30 fps).

Encode Enhancement enabled:
Main stream: 1st & 5th channel 4K@(1–15 fps), others 4K@(1–7 fps); 1st & 5th channel 6 MP@(1–20 fps), others 6 MP@(1–10 fps); 1st & 5th channel 5 MP@(1–25 fps), others 5 MP@(1–12 fps); 1st & 5th channel 4K-N/4 MP/3 MP@(1–25/30 fps), others 4K-N/4 MP/3 MP@(1–15 fps); 4K/6 MP@(1–10 fps), 5 MP@(1–15 fps); 4M-N/1080p/720p/960H/D1/CIF@(1–25/30 fps).
Sub stream: 960H@(1–15 fps); D1/CIF@(1–25/30 fps).
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General; alarm; motion detection; intelligent; POS
Recording Playback 1/4/9
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Ports
Audio Input 1-channel RCA; 8-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
Disk Interface 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <10 W (without HDD)
Net Weight 1.00 kg (2.21 lb)
Gross Weight 1.40 kg (3.09 lb)
Product Dimensions 260.0 mm × 237.8 mm × 47.6 mm (10.24″ × 9.36″ × 1.87″) (W × D × H)
Packaging Dimensions 333.0 mm × 89.0 mm × 315.0 mm (13.12″ × 3.51″ × 12.41″) (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Installation Desktop
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1; CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024; FCC: Part 15 Subpart B
