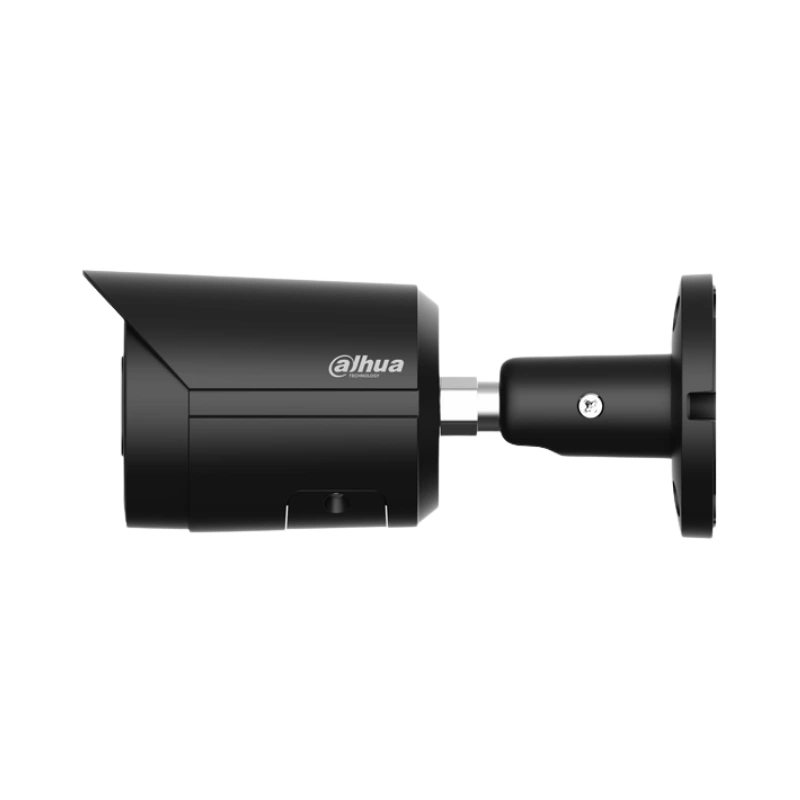

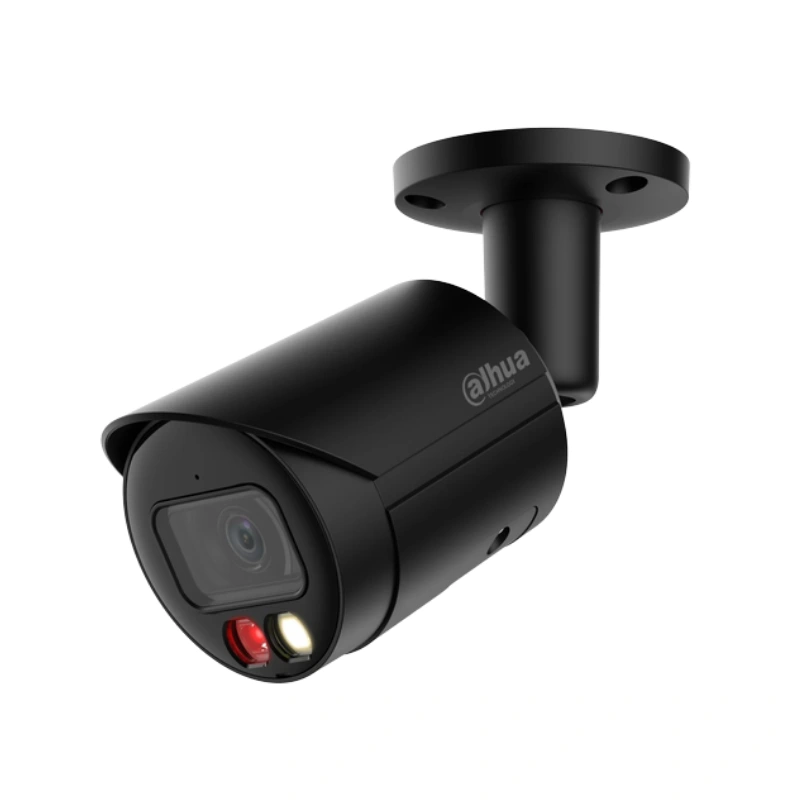

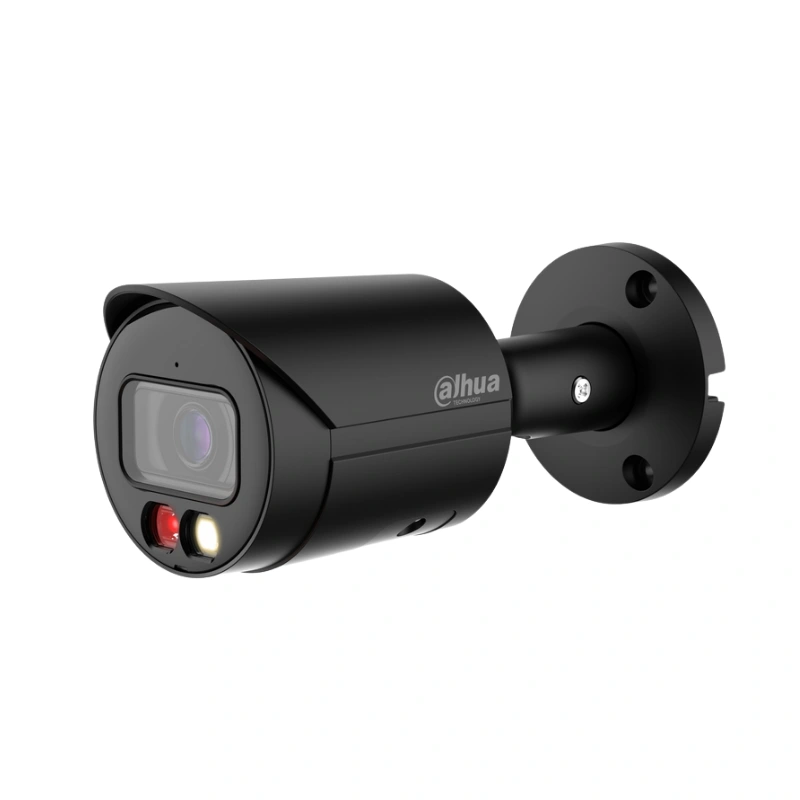

Dahua IPC-HFW2849S-S-IL 8MP 4K Smart Dual Light IP camera with PoE and IP67 front side view
Dahua IPC-HFW2849S-S-IL 8MP 4K Smart Dual Light IP camera with PoE and IP67 front side view 2
Dahua IPC-HFW2849S-S-IL 8MP Smart Dual Light Fixed-focal - Image 3
Dahua IPC-HFW2849S-S-IL 8MP 4K Smart Dual Light IP camera with PoE and IP67 front side view
Dahua IPC-HFW2849S-S-IL 8MP 4K Smart Dual Light IP camera with PoE and IP67 front side view 2

Dahua IPC-HFW2849S-S-IL 8MP Smart Dual Light Fixed-focal

Dahua

Dahua IPC-HFW2849S-S-IL 8MP Smart Dual Light Fixed-focal Bullet WizSense Network Camera

Dahua IPC-HFW2849S-S-IL е професионална 8MP IP камера со 4K Ultra HD резолуција од 3840 × 2160 пиксели, дизајнирана за висококвалитетен видео надзор во различни услови. Камерата користи 1/2.7″ CMOS сензор и обезбедува детална и јасна слика, додека фиксниот објектив од 2.8 mm или 3.6 mm овозможува избор според потребното видно поле.

Камерата располага со Smart Dual Light технологија со IR и топло светло, со осветлување до 30 метри. Ова овозможува подобра видливост во целосна темнина и автоматско прилагодување на осветлувањето според условите. Поддршката за 120 dB WDR, BLC, HLC и 3D NR дополнително придонесува за јасна слика при силна контра-светлина и во услови со намалена видливост.

За видео компресија се поддржани H.265, H.264 и MJPEG, како и Smart H.265+ и Smart H.264+, што овозможува поефикасно користење на мрежниот сообраќај и просторот за складирање. Камерата поддржува две видео струи и резолуции до 3840 × 2160.

За напредна заштита, IPC-HFW2849S-S-IL поддржува IVS функции, вклучувајќи Intrusion и Tripwire со класификација на луѓе и возила. Поддржани се и Motion Detection, Region of Interest, Smart Illumination и Privacy Masking.

Вградениот микрофон овозможува аудио снимање, а камерата поддржува различни аудио компресии. За складирање може да се користи Micro SD картичка до 256GB, FTP, SFTP или NAS. Мрежното поврзување е преку RJ-45 10/100 Base-T, со поддршка за PoE 802.3af, што овозможува пренос на податоци и напојување преку еден мрежен кабел.

Камерата е компатибилна со ONVIF Profile S/G/T, P2P и Milestone, а може да се управува преку Smart PSS, DSS и DMSS, како и преку iOS и Android уреди.

Со IP67 заштита, метално куќиште и работен температурен опсег од –40 °C до +55 °C, Dahua IPC-HFW2849S-S-IL е одличен избор за надворешен и професионален видео надзор.

Гаранција 12 месеци

8.140,00 ден

Dahua IPC-HFW2849S-S-IL 8MP Smart Dual Light Fixed-focal – Specifications
Camera
Image Sensor 1/2.7″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto; Manual
Illuminator Number 1 (IR LED); 1 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 111°; V: 58°; D: 132°
3.6 mm: H: 87°; V: 49°; D: 100°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 1.9 m (6.23 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm Detect: 84.8 m (278.22 ft)
Observe: 33.9 m (111.22 ft)
Recognize: 17.0 m (55.77 ft)
Identify: 8.5 m (27.89 ft)
3.6 mm Detect: 98.7 m (323.82 ft)
Observe: 39.5 m (129.59 ft)
Recognize: 19.7 m (64.63 ft)
Identify: 9.9 m (32.48 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 3840 × 2160 @(1–20 fps)/2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Security Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.7 W (12 VDC); 3.4 W (PoE)
Max. (H.265+ max. resolution + max. stream + WDR + warm light intensity + IVS): 5 W (12 VDC); 5.9 W (PoE)
Environment
Operating Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95%
Protection IP67
Structure
Casing Material Metal
Product Dimensions 166.2 mm × 70 mm × 70 mm (6.54″ × 2.76″ × 2.76″) (L × W × H)
Net Weight 0.47 kg (1.04 lb)
Gross Weight 0.59 kg (1.30 lb)
SKU: 1524 Category: Brand:
Brands

Dahua
Color

Black
Megapixel

8 mp
Type of Camera

Smart-Dual Light Camera
